Barium

Barium • Alkaline Earth Metal

Primary XPS region: Ba3d
Overlapping regions: Co2p
Binding energies of common chemical states:

Chemical state Binding energy Ba3d5/2/eV
BaCO3/BaO 780.0
BaSO4 780.1

Experimental Information

N/A

Interpretation of XPS spectra

crystal structureAbout This Element

Symbol: Ba
Date of Discovery: 1808
Name Origin: Greek barys
Appearance: silver
Discoverer: Sir Humphrey Davy
Obtained From: barytine, whiterite

Melting Point: 998 K
Boiling Point: 1413 K
Density[kg/m3]: 3510
Molar Volume: 38.16 × 10-6 m3/mol
Protons/Electrons: 56
Neutrons: 81

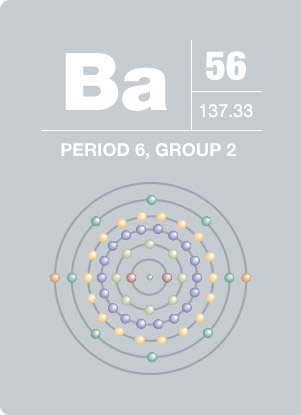

Shell Structure: 2,8,18,18,8,2
Electron Configuration: [Xe]6s2
Oxidation State: 2
Crystal Structure: cubic body centered

Primary uses for barium are in fireworks, vacuum tubes, fluorescent lamps, and sparkplugs. Barium, meaning “heavy” from the Greek word barys, was first discovered by C. Scheele in 1774. It is extremely difficult to obtain this metal in its pure form because of the element’s nature to quickly oxidize in air.
This metal is also extremely reactive with water or alcohol. Being that water or acid soluble barium compounds are extremely poisonous, the compounds should be handled with great care. Because barium sulfate does not dissolve and will completely rid from the digestive tract, it can be used in medicine. This compound is often used in radiography studies of human swallowing. Small amounts of barium compounds are used in paints and glassmaking.
